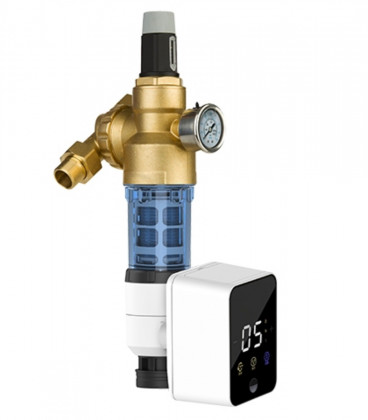

Automatic self-cleaning filter
Equipped with a pressure reducer and pressure gauge
Countercurrent washing without water shut-off.
Advantages:
- filtration of solid impurities such as sand, rust, limescale, etc;
- can be installed on vertical, horizontal or angled pipes
- 1" and 3/4" universal connector (26/34 and 20/27)
- system BACKWASH - simple reverse flush operation. Just one valve to open or automate!
- rinsing water can be drained directly into the sewage system
- system TWIST & CLEAN - cleaning the filter housing from the inside without having to turn off the water from the system
An upgradeable system
Optional: add the electronic box to automate backwashing
Protect your sanitary appliances from impurities.
Thanks to its stainless steel sieve, this filtration will retain impurities, guaranteeing much better quality water and protecting your sanitary equipment.
It's also a very good solution for those who use finer filters (5 micron filtration cartridges, activated carbon, water purification, etc.) to be able to maintain their filtration cartridges much longer and avoid having to change them too often.
All too often, limescale is blamed for all the problems in our water system.
Even if the water in the network is not treated against limescale, it also contains a lot of sand, rust and impurities that simply come from the pipes buried in our network. They sometimes leak because they degrade over time and cannot be changed as regularly as they should.
Our water distribution pipes also naturally form a deposit called biofilm, some pieces of which may come loose from time to time and invite themselves into your home...
Effective backwash cleaning
This filter features an ingenious backwash system. When activated, the water will flow backwards through the filter, allowing it to flush out any impurities it may have retained without shutting off your home's water supply.
This rinsing water is simply connected to the waste water drain or collected in a bucket if you don't have a drain nearby.
Automatic filter washing is possible!
As an OPTION, this filter can also be fitted with a box that will activate the backwash automatically, so you won't have to worry about it.
You'll never have to worry about it again!
The system will become autonomous, maintaining optimum water quality in your home without any further intervention on your part.
Appliance protection against excess pressure
Thanks to its pressure gauge, checking the correct water pressure in your home is child's play.
It will then be easy to adjust the pressure regulator to protect all the appliances that use water in the home.
A pressure of 3 bars is sufficient for the plumbing systems in a home to function optimally.
Above 3 bars, the pressure is considered too high and it is advisable to reduce it.
1bar = 0.1 MPa - recommended setting 3 bars = 0.3 MPa
What are the consequences of too much pressure?
Premature wear of sanitary appliances
Washing machines, dishwashers and water heaters are designed to withstand normal pressures. However, if they are regularly subjected to excessive pressure, their lifespan will be drastically shortened. This is also often the cause of many breakdowns.
Replacing or repairing these appliances can quickly prove very costly.
Water leaks at sensitive points
Today, there are many different technologies used to connect pipes (crimping, welding, compression, etc.). Even if they are designed to withstand pressures well in excess of 3 bar, they can become sensitive, deteriorate significantly and even leak if they are subjected to excessively high pressure too regularly.
Irrational waste of water
Water flow is also linked to pressure. Above 3 bars, the constant flow through safety groups, toilet flushes and our taps represents a significant increase in water consumption, which will be reflected in the bill!
Difficult to adjust mixer tap temperature
Thermostatic valves are designed to work optimally when the pressure is even. If the pressure is too low, the hot and cold water will not be mixed in the correct proportions to achieve the desired temperature.
Slamming and hissing in the pipes
As you will have noticed, in some installations, when a tap is closed too quickly, a loud slamming sound is heard. This noise is known in the trade as "water hammer". As well as causing a nuisance in terms of noise, this banging will weaken all the welds over the long term, and the shock wave can even cause pipes to rupture, resulting in water damage.
An easy-to-install solution
Thanks to its 360° rotating ring connection, it is easy to install, whatever the inclination of the pipe.
This product is made in Europe and has all the necessary certifications.
Self-cleaning filter characteristics
1 bar = 0.1 MPa - recommended setting 3 bars = 0.3 MPa
- inlet pressure: 8 bar maximum
- outlet pressure: adjustment from 2 to 6
- working pressure: minimum 1.5 bar
- working temperature: 5 to 30 degrees Celcius
- connection sizes: 3/4 and 1 inch - 20/27 or 26/34
- filtration fineness: 90 then 40 microns
- water output: 4m3/hour or 66.7 litres/minute
- weight: 2.3kg
- size: 160 x 95 x 360mm
- connection spacing: 95mm without connectors
The filter can be cleaned without dismantling for many years.
A built-in scraper ensures that the jar and grille are cleaned properly when the self-cleaning function is activated.
If the inside of the filter becomes too dirty, or if it starts to deteriorate after ten years or so, it will have to be completely dismantled. The grids inside are available as spare parts if required.
Installing the filter
The metal support supplied is only used for the dismantling key or as an assembly aid!
As this type of filter is fitted with a 360° rotating ring, it is the hoses on either side of the filter that will hold it in place against the wall.
So use hose clamps that are suitable for the hoses you will be connecting to the filter.
