25 watt UV steriliser

25 Watt UVC sterilisation destroys micro-organisms in the water.

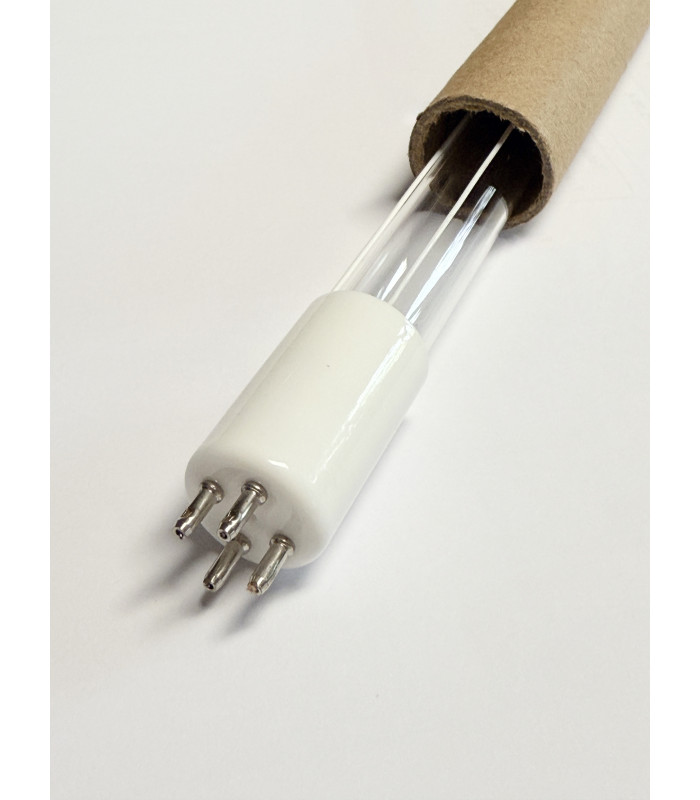

- New AMALGAM UVC LAMP
- Denser, more effective light - long life - up to 16,000 hours - 2 years!
This stainless steel system, to be connected to your filtration system, is perfectly suited to borehole water, wells or rainwater tanks.

More details

New product

144,00 € tax incl.

Read the 3 reviews

- +

More info
Download
Product features
Reviews

More info

Unlike the other techniques used for water treatment (softeners, reverse osmosis, water purifiers, filter carafes or filter cartridge holders), UV sterilisation is a process that provides effective water disinfection.

25 watt UV steriliser

To make water drinkable, this appliance can treat 4.8 GPM or 21.8 litres/minute, i.e. 1.30 m³/hour.
To make water clean, this appliance can treat 6 GPM or 27 litres/minute, i.e. 1.63 m³/hour.

It consists of:

a 304 stainless steel tube
a quartz (silicon glass tube)
2 silicone seals
a 220v ballast;
a UV lamp (life of approximately 8,000 hours)

Features:

length of ballast wire 1.95 metres
external diameter of stainless steel tube 64mm
stainless steel tube length 520mm

Quartz (also known as silica) is made of silicon glass, a high-quality type of glass composed almost exclusively of pure silica.

How does UV sterilisation work?

In order to neutralise bacteria, microbes, viruses, unicellular algae and other living cells in the water, the water is passed through a treatment chamber where it is irradiated with ultraviolet rays.

Depending on the amount of energy received (measured in micro-Ws/cm2), the micro-organisms will be:

Sterilised by a bacteriostatic effect (they continue to live but can no longer reproduce).
Destroyed (bactericidal effect).

Be careful, however, to use the right frequency of ultraviolet electromagnetic wave.

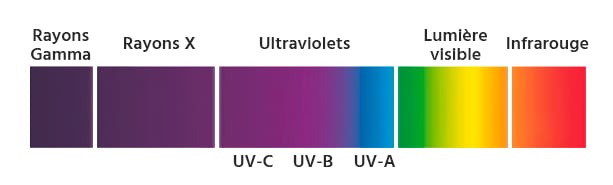

Not all UV rays have a sterilising or disinfecting effect:

UVc: ozone formation around 185 nm
UVc: destruction of micro-organisms between 200 and 280 nm
UVb: vitaminisation of food products between 285 and 315 nm
UVa: skin pigmentation between 315 and 400 nm

stérilisation UV

To sterilise the water you need a frequency of around 254nm inside the treatment chamber.
This is the shape of the WC that should be used.

UV sterilisation eliminates pathogenic micro-organisms, but this does not always mean that the water is pleasant to drink or use. That's why this process is sometimes combined with a filtration method to improve the taste of the water.

Although UV sterilisation eliminates pathogenic micro-organisms, it has no effect on the taste or turbidity of the water, so it needs to be combined with a filtration method to make it more pleasant to drink and use.

Why choose this technique?

UV sterilisation offers a number of advantages:

does not use chemical products
no chemical or physical modification of the treated water
compact system that takes up little space and is relatively easy to install
easy maintenance: simply change the UV lamp about once a year
instant bactericidal effect

It is ideal for:

sterilise water from local sources (spring, rain, river, well, borehole, etc.)
maintain your pool using fewer chemicals
a professional who discharges water and wishes to limit its environmental impact

Download

Manuel en Français

Download (1.22M)

Product features

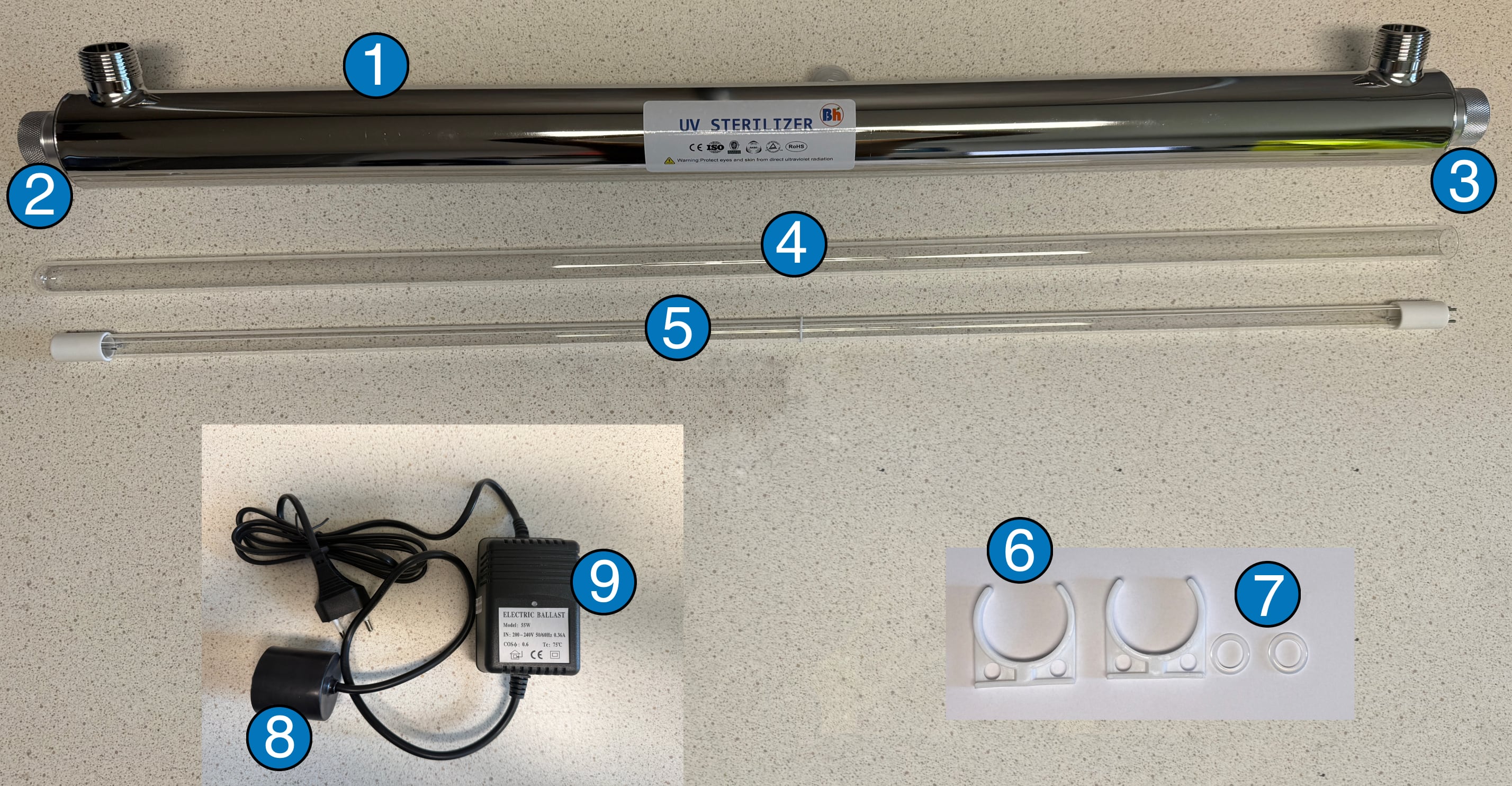

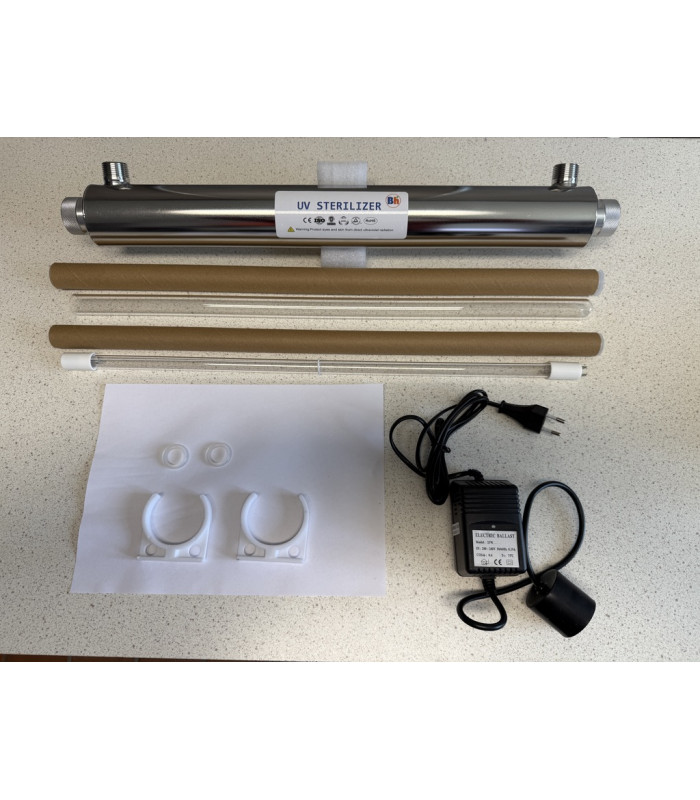

This UV steriliser is supplied with the items shown in the image above.

ballast
TUV 25 W PHILIPS lamp (life approx. 9000 hours)

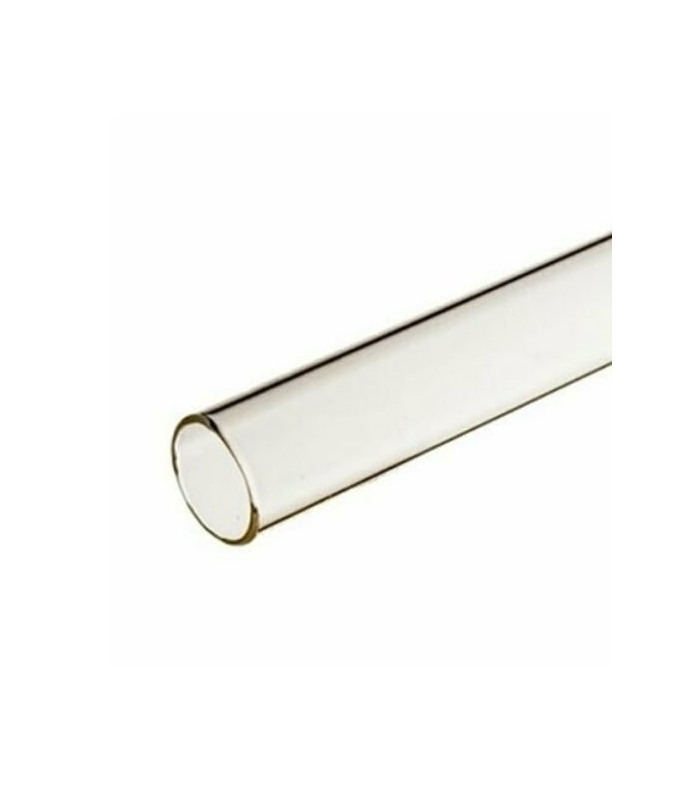

quartz tube (transparent quartz tube in which the lamp is installed)
stainless steel plugs (x2) + o-rings (x2)
304 stainless steel steriliser tube
connection cable for Uvc lamp
brackets (x2)

For information, an ballast is a device used to operate PL lamps, neon tubes and other gas discharge lamps. The ballast creates a voltage spike in order to light the bulb. It also ensures a constant voltage so that the bulb stays lit.

The dimensions.

Stainless steel chamber 515 millimetres external length x 65 millimetres external diameter
Water pipe connections for 3/4" (20/27) connections
Bracket height 87 mm, width 90 mm and depth 15 mm

Reviews

Filter reviews

(3)

(0)

Reset

Click here to leave a review

fabriceD

2025-01-03

Compliant

The equipment has not yet been installed, but appears to be in order and is correctly packaged.

Patrick

2024-09-26

10/10

Serious company.

globale Energ

2024-09-21

Perfect

Works very well for a very affordable price, see how long it lasts.

	You can add options 0,00 € Disregard this box, which is not a product. If you want one or more paying options in addition, tick the corresponding box(es) and choose the quantities. The total will be updated at the bottom of the options and on the product price. Then simply click on add.

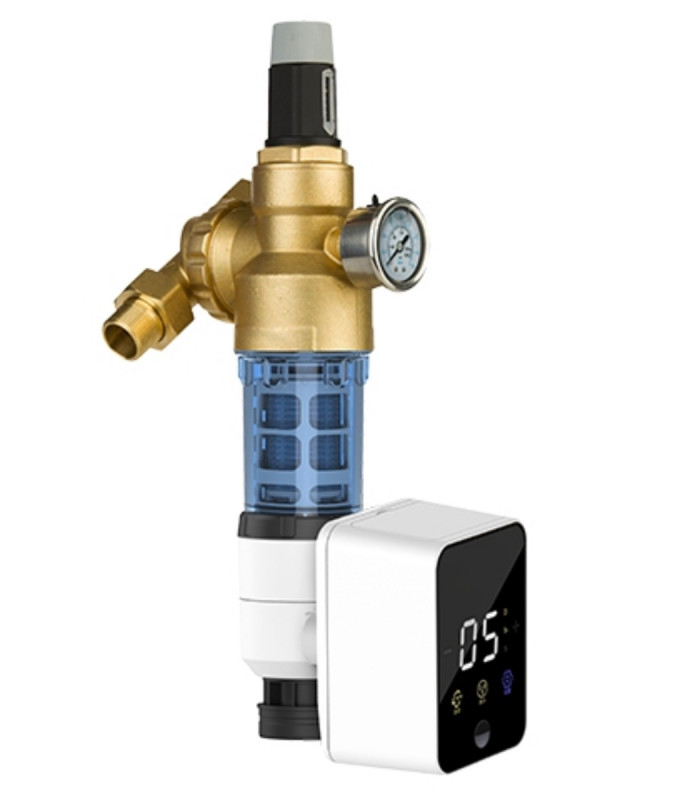

	Automatic self-cleaning filter 148,80 € Equipped with a pressure reducer and pressure gauge Countercurrent washing without water shut-off. Advantages: filtration of solid impurities such as sand, rust, limescale, etc; can be installed on vertical, horizontal or angled pipes 1" and 3/4" universal connector (26/34 and 20/27) system BACKWASH - simple reverse flush operation. Just one valve to open or automate! rinsing water can be drained directly into the sewage system system TWIST & CLEAN - cleaning the filter housing from the inside without having to turn off the water from the system An upgradeable system Optional: add the electronic box to automate backwashing

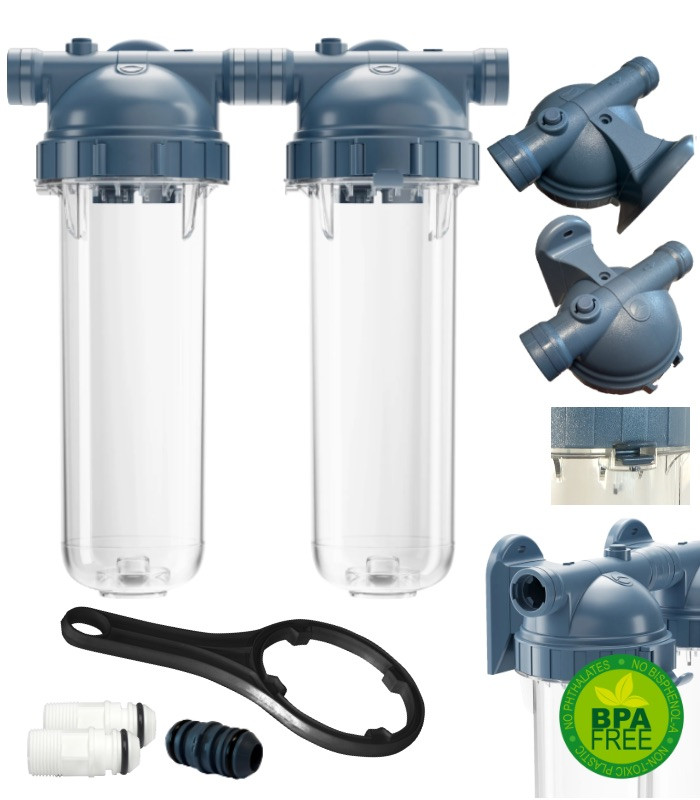

	Modular water filter support 45,00 € Allows you to create several filtration stages and easily add more later. Bisphenol A-free product, made in Europe Depending on the cartridges used: eliminates sludge and residues improves taste improves odour better water quality optimises the operation of limescale inhibitors limits pesticides, heavy metals, etc. Don't forget to order the appropriate 10" inch cartridges.

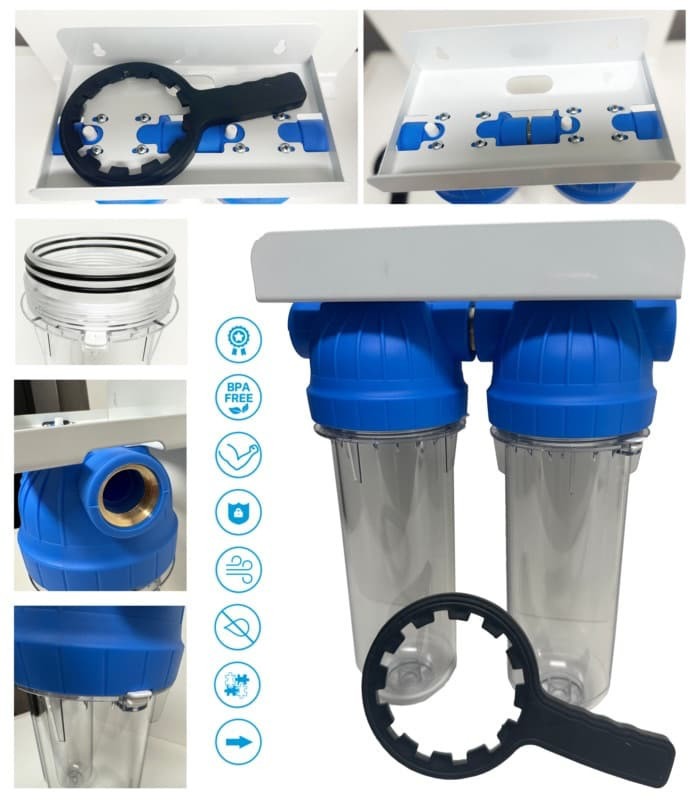

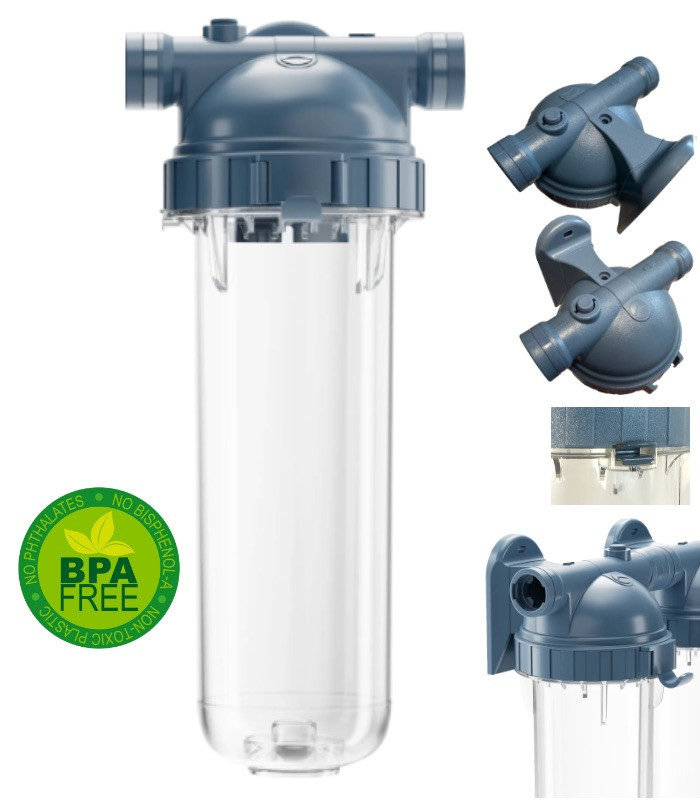

	Water filter 29,90 € High-quality BPA (bisphenol) free filter housing Can be used with 1 standard 10" inch cartridge: activated carbon filter (taste + smell + pollutants) sediment filter (retains organic impurities) sediment and activated carbon filter (2-in-1 cartridge) anti-iron filter (eliminates rust - brown colour) Cartridges visible at the bottom of the page
